Sony PS5 Pro Teardown: Liquid Metal Cooling System Revealed

Felix Dubois

4 min read

Post on May 08, 2025

4.8

Share

The Liquid Metal Cooling System: A Deep Dive

Traditional heat pipe systems have served gaming consoles well, but they've hit a ceiling in terms of heat dissipation for the next generation of high-powered hardware. The PS5 Pro's liquid metal cooling system represents a significant leap forward, offering unparalleled thermal management capabilities. This system promises to keep the powerful APU running cool, even under intense gaming loads.

Advantages of Liquid Metal Cooling:

• Unmatched Thermal Conductivity: Liquid metal boasts significantly higher thermal conductivity than traditional heat transfer fluids, resulting in drastically faster heat dissipation. This translates directly into lower operating temperatures.
• Enhanced Stability and Longevity: Lower operating temperatures mean increased stability and a longer lifespan for the console's internal components. Reduced thermal stress minimizes the risk of degradation and failure.
• Higher Clock Speeds and Improved Frame Rates: By effectively managing heat, the liquid metal cooling system allows for higher and more stable clock speeds. This translates directly into smoother gameplay and increased frame rates, resulting in a superior gaming experience.

However, liquid metal presents challenges. Its corrosive nature necessitates precise application and robust containment to prevent leaks, a significant hurdle overcome by Sony's engineers. Any leakage could severely damage the console's internal components.

Teardown Process and Methodology

Disassembling the PS5 Pro to access the liquid metal cooling system required a meticulous and carefully planned teardown process. Specialized tools, including precision screwdrivers, plastic opening tools, and potentially a heat gun for delicate component separation, were essential. Safety precautions, including static electricity protection and careful handling of delicate internal components, were paramount throughout the disassembly.

(Insert high-quality images or video of the teardown process here if available)

Challenges encountered included the intricate placement of components and the need for extreme care to avoid damaging the liquid metal system itself. The process highlights the sophisticated engineering and design choices that went into the creation of this console. Detailed documentation of each step was crucial for accurate analysis and understanding.

Analysis of the Cooling System's Components

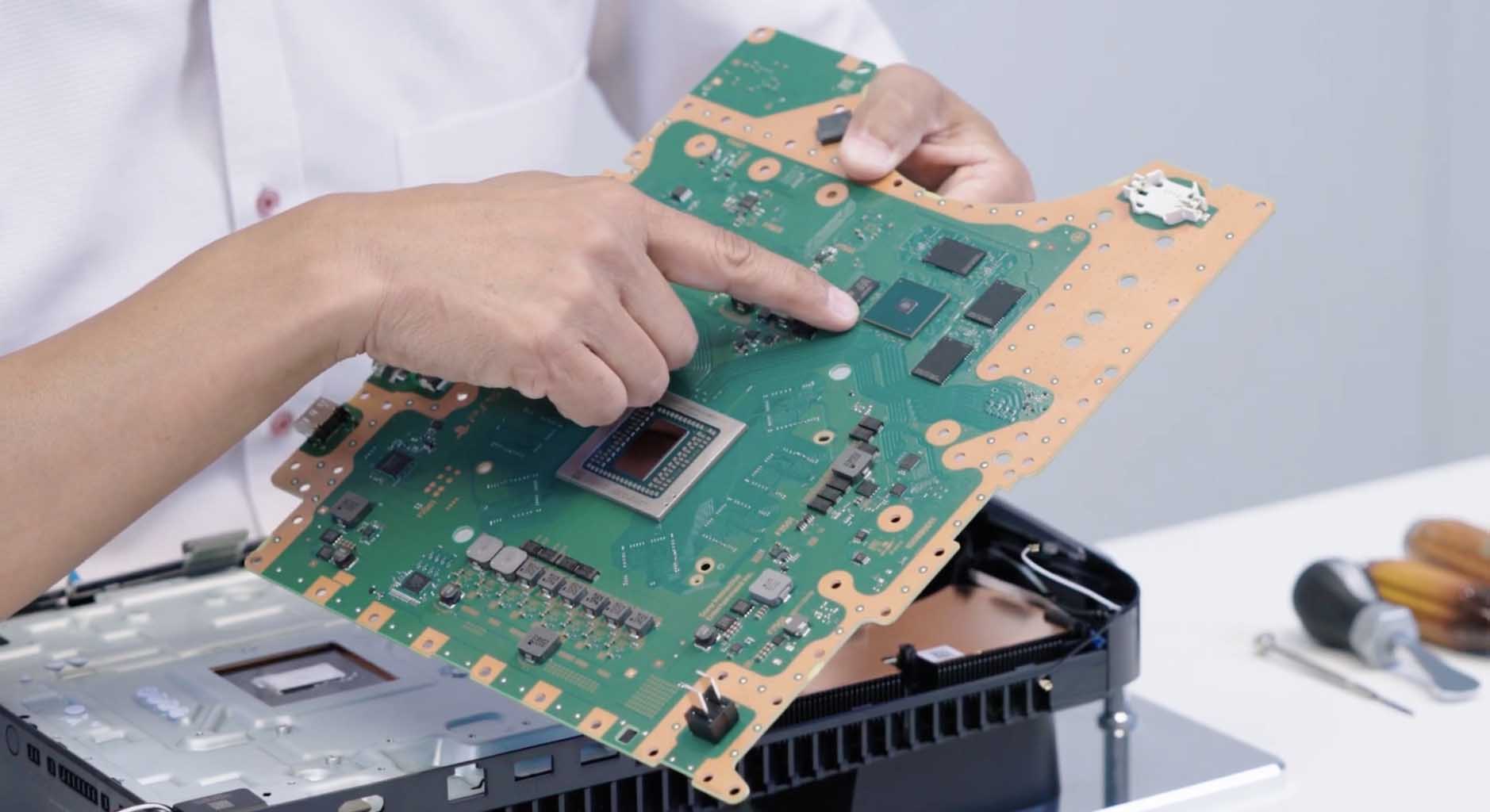

The PS5 Pro's liquid metal cooling system is a marvel of engineering. A critical examination reveals a precisely engineered application of the liquid metal directly onto the APU die, maximizing heat transfer. This differs significantly from the heat pipe system used in the standard PS5, indicating a considerable investment in advanced cooling solutions.

The materials used appear to be designed for maximum durability and reliability, considering the potential corrosive nature of the liquid metal. The system's integration with other internal components is seamless, suggesting a thorough design process that prioritized both thermal management and overall system stability. The heat sink, likely incorporating a vapor chamber for additional heat dissipation, plays a vital role in distributing the heat away from the APU.

Performance Implications and Future Outlook

The implementation of a liquid metal cooling system in the PS5 Pro promises significant performance improvements. The ability to maintain lower operating temperatures under heavy loads allows for higher sustained clock speeds and more consistent frame rates. This translates directly to a more fluid and responsive gaming experience, particularly in graphically demanding titles.

The PS5 Pro's liquid metal cooling system points towards a future where advanced cooling technologies are critical for delivering top-tier performance in gaming consoles. We can expect to see further innovation in this area, possibly with even more efficient and effective cooling solutions emerging in future gaming hardware. This could involve advancements in materials science, microfluidics, and other related fields. The PS5 Pro sets a new benchmark for thermal management in gaming, paving the way for increasingly powerful and capable consoles.

Conclusion: The Sony PS5 Pro Teardown: A Revolutionary Leap in Cooling Technology

This PS5 Pro teardown reveals a revolutionary approach to thermal management. The advanced liquid metal cooling system represents a significant leap forward in console technology, promising substantial performance improvements through superior heat dissipation. The benefits—enhanced stability, higher clock speeds, and improved frame rates—are undeniable. This innovative solution showcases Sony's commitment to pushing the boundaries of gaming hardware. What are your thoughts on Sony's implementation of liquid metal cooling in the PS5 Pro? Share your comments below! Let's continue the conversation about the PS5 Pro and its groundbreaking liquid metal cooling system.
